MONITORING of the EFFECTS and RISKS of the LOCUST PLAGUE
in BURKINA FASO (September 2004 - April 2005)


ARCHIVE


SITUATION ASSESSMENT MAPS

The monitored area extends over 660 x 890 kilometers. It englobes all of Burkina Faso, as well as part of the neighbour countries.

The maps produced by ParBleu Technologies Inc. are presented in homolosine Goode's cartographic projection, with a spatial resolution of 500 meters x 500 meters.

These maps are destinated to be introduced within Geographic Information Systems dedicated, either to the monitoring of vegetation and crop growth in order to predict agricultural yields and production, or to the monitoring of environmental conditions in the framework of the battle against locusts.


Evolution of the vegetation cover

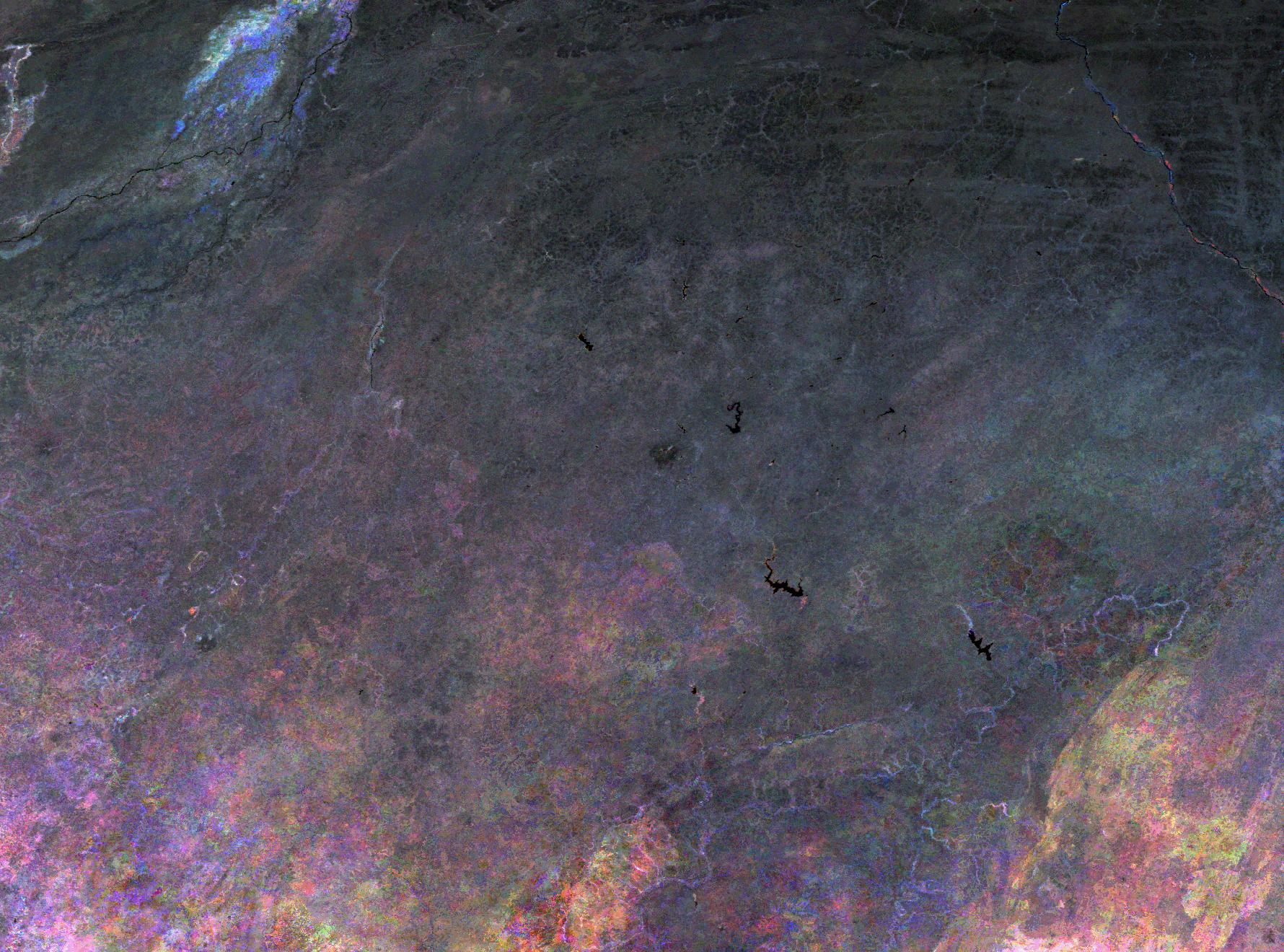

The map below represents the evolution of the percentage of vegetation cover, between January and April 2005.

From this map, it is possible to retrieve the average monthly values of the percentage of vegetation cover, thanks to the digital pixel values:

Image channel Corresponding period
1st (red channel) March 6th - April 6th, 2005
2nd (green channel) February 2nd - March 5th, 2005
3rd (blue channel) December 26, 2004 - January 26, 2005

The value of the percentage of vegetation cover can then be obtained as follows, through the simple relationship :

% (vegetation cover) = (digital pixel value - 40) / 2

The margin of error is estimated to +/- 10%.
The offset of 40 units has been introduced to enable the representation of the desert areas (without any vegetation).



Areas exhibiting Blue tones are the areas where the vegetation cover has constantly decreased during the observation period.
Areas exhibiting other tones are the ones where some vegetation growth has been observed between January and March/April 2005.


Hydric stress

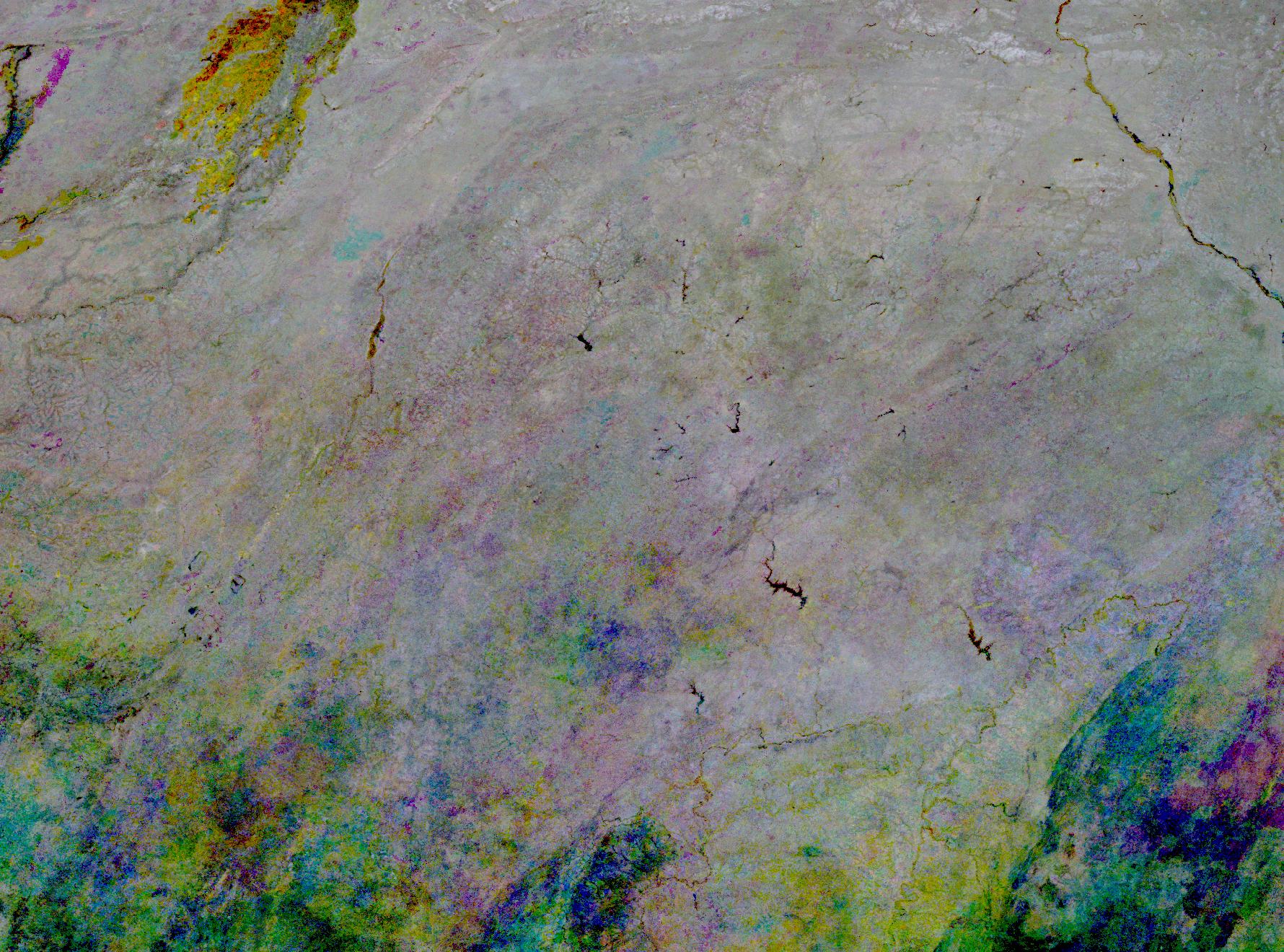

The map hereunder represents the evolution of hydric stress between January and April 2005.



In the absence of calibration data, it has not been possible to establish a quantitative relationship between pixel values and the soil moisture content (Hydric stress increases with the pixel values).
Calibration measurements would allow to establish such a relationship enabling the quantitative estimation of soil moisture content.

From this map, it is possible to retrieve the average monthly values of our hydric stress index, thanks to the digital pixel values :

Image channel Corresponding period
1st (red channel) March 6th - April 6th, 2005
2nd (green channel) February 2nd - March 5th, 2005
3rd (blue channel) December 26, 2004 - January 26, 2005


Comparison 2003 - 2005

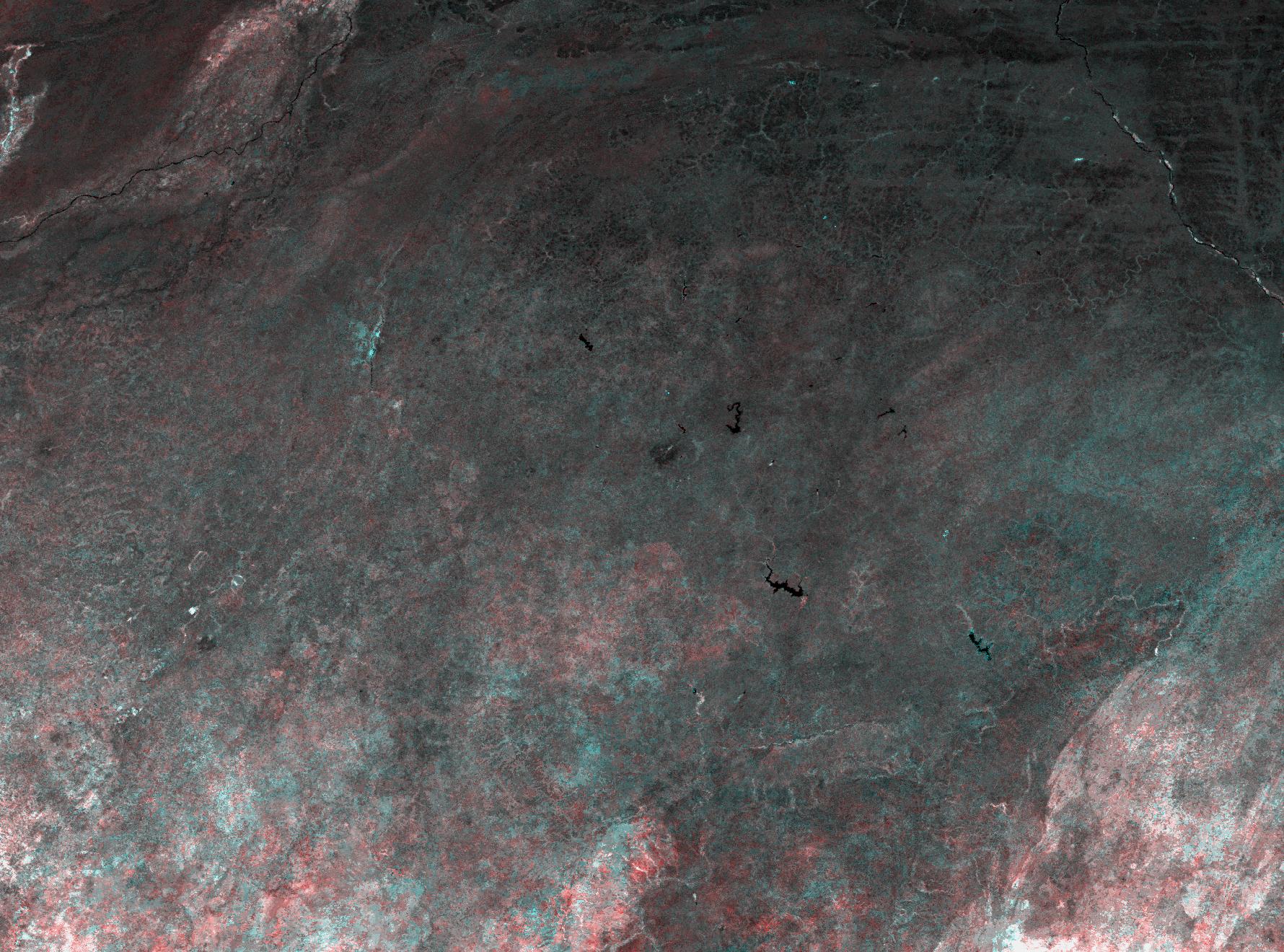

The following image enables to compare the percentage of vegetation cover between the present year and a locust-free year.
Red tones denote the areas which are more vegetated in 2005, whereas blue tones denote the areas which are less vegetated in 2005.
The average monthly values of the percentage of vegetation cover can be retrieved from the digital pixel values, using the above mentioned relationship.

Image channel Corresponding period
1st (red channel) March 6th - April 6th, 2005
2nd and 3rd (green and blue) March 6th - April 6th, 2003


Produced by PARBLEU TECHNOLOGIES Inc. under mandate of the Canadian Space Agency.
(Standing Offer for Disaster Management Information Products and Services; PWGSC File Number 9F028-014927/008/ST)
Procurement of the TERRA/AQUA MODIS imagery ('MODIS 32-day Global Composites' products)
Courtesy of the University of Maryland, 'Global Land Cover Facility' (URL: http://glcf.umiacs.umd.edu)
